SOLARLIVE Thermal solar system TROPIC 120C (temperate climate, up to -10ºC) Sanitary hot water and Heating rooms.
SOLARLIVE Thermal Solar system TROPIC 120C is a compact thermal solar system for DHW (domestic hot water) and hot water heating system designed especially for underfloor heating.
With its elegant design and easy integration into any facade, the TROPIC 120C system is ideal for a real energy saving in temperate geographical zones up to -10 ° C.
TROPIC 120C system with integrated energy storage cell and compact production, performs the function of heating water continuously through the exchange of energy that occurs inside the collector.
This innovating equipment does not need a classic storage tank since, the collector is slightly thicker, being able to store energy that the system is giving to the heating closed circuit or to ACS sanitary hot water through an inter accumulator.
This transfer of temperature is made at optimal temperature to minimize the energy losses. Without electromechanical elements subject to damage so the system has a 10 year warranty.
Thanks to patented SOLARLIVE natural recirculation system, TROPIC 120C obtains around 300% more efficiency per m2 in terms of KWh regarding currently compact systemson the market and traditional thermo siphon systems.
Our patented system of natural recirculation also avoids the problems caused by dissipation of high temperature at collectors in summer.

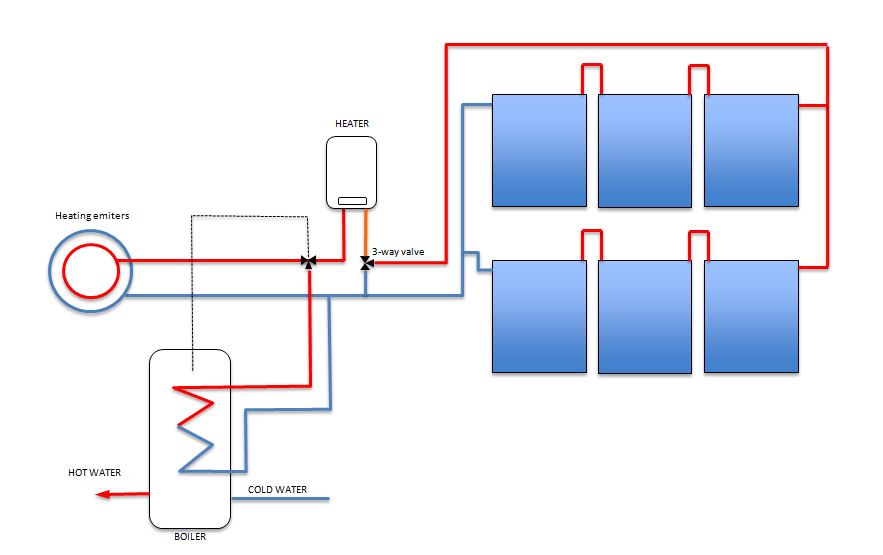

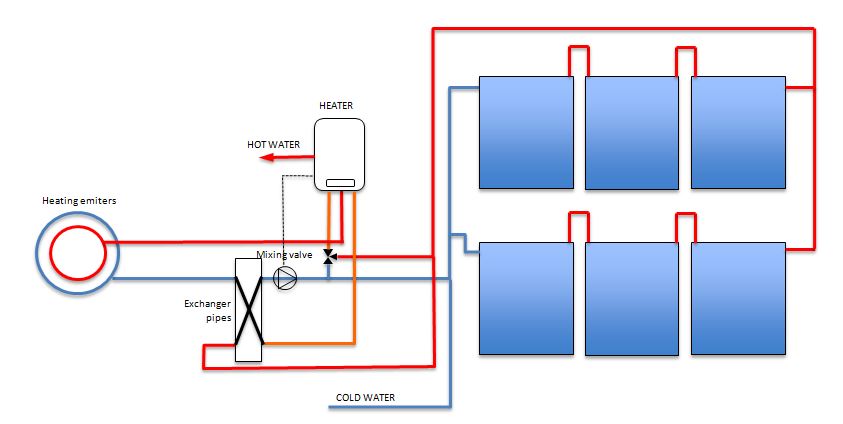

The TROPIC 120C system can be installed in series to obtain greater savings in heating and ACS savings. For its design is especially efficient in heating floors.
Structure:
Sturdy anodized aluminum chassis for both flat roof to pitched roof.
Energy storage:
Energy storage tank in stainless steel AISI 316L stainless steel heat exchanger.
